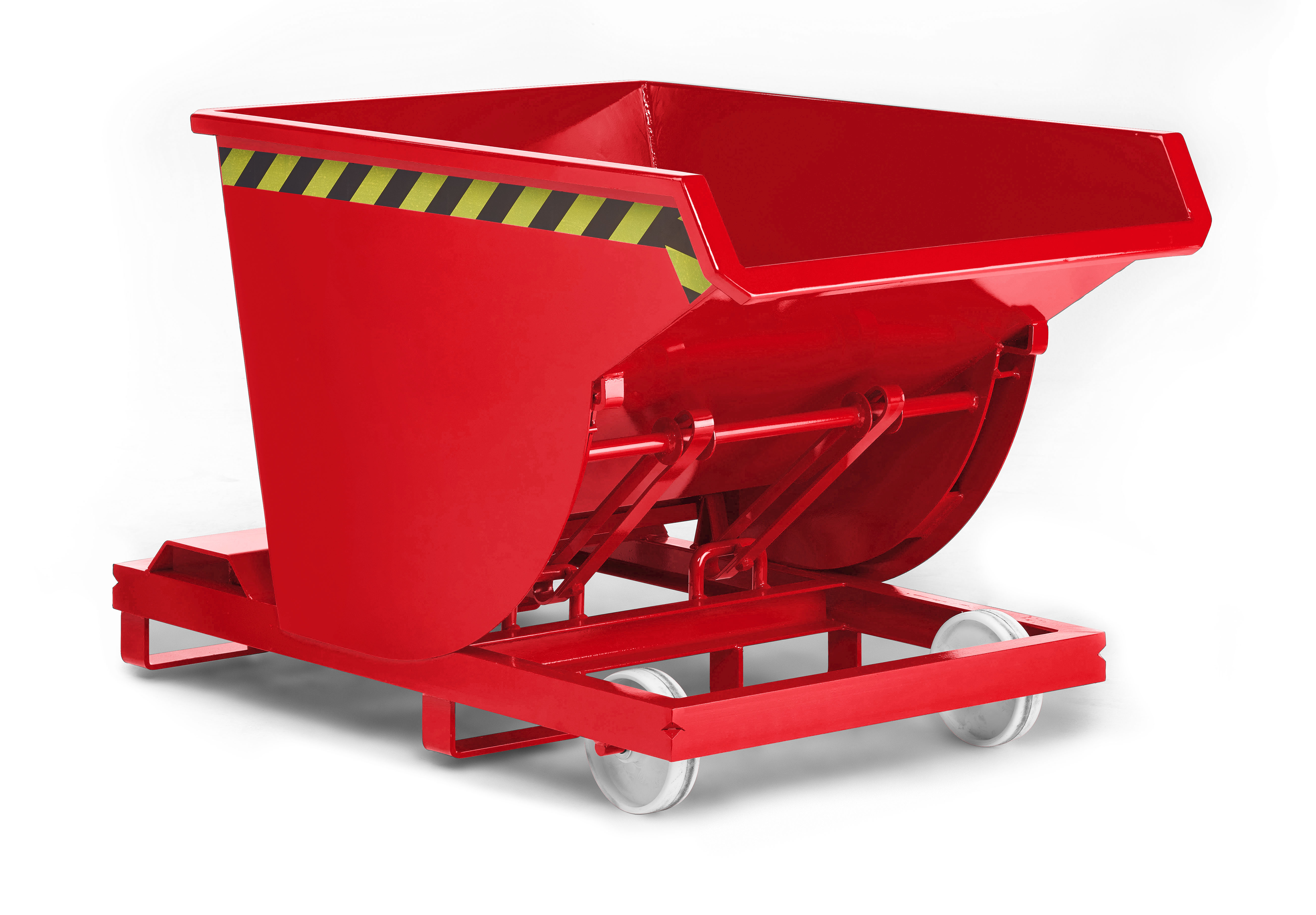

Self-tipper RSK-50

This self-tipper for forklifts with a capacity of 500 dm³ has wheels as standard and can be easily emptied. When the cable is triggered by the forklift, the trough automatically swings forward, empties, swings back and locks again. The tipping process takes place via rolling skids, which enables tipping to be gentle on the forklift truck. The forks should have a minimum length of 800 mm for this tipping container

A chain lock ensures a high level of safety and prevents the forks from slipping. Thanks to a 3 mm sheet steel with all-round edge reinforcement and a base frame construction made of U-profile with transverse reinforcements, the self-tipper, like all of our attachments , is very durable and robust. Thanks to integrated rollers in the chassis, the tipper has an extremely low overall height, even with a set of wheels.

Item features at a glance:

• Self-tipper for forklifts with rollers
• Despite the wheels, the tipper has an extremely low overall height because the wheels are integrated into the driving frame
• Special rolling skids for tipping that protects the material and the forklift truck
• The tipping process is triggered by gravity
• Required minimum length of the forks: 800mm
• Easy and quick tipping using a cable pull from the forklift seat
• Trough made of 3 mm sheet steel
• Stable base frame made of 6 mm U-profile with cross reinforcements
• Robust construction: very durable and robust
• Entry pockets for pick-up by forks
• With chain to prevent slipping from the tines
• Yellow/black warning stripes in accordance with the labeling requirement ASR A 1.3
• With CE marking in accordance with EU directives
• RAL color as desired (powder-coated), alternatively galvanized version (at an additional charge)
