Crane arms and load arms for forklifts
With a crane arm, your forklift becomes a crane within seconds. This is particularly practical for lifting loads that can only be grasped from above, for example when installing and removing machine parts.
- Manufacturer:RR
- Item number:10620
- Load capacity: 650 - 3000kg
- Dimensions W x H: 500x480mm
- depth: 2220 - 3720mm
- Weight: 160kg
- Clear entrance pocket dimensions: A 102mm
- execution: 2 hooks, extendable 6 times
- Manufacturer:RR
- Item number:10621
- Load capacity: 1000 - 5000kg
- Dimensions W x H: 500x500mm
- depth: 2220 - 3720mm
- Weight: 190kg
- Clear entrance pocket dimensions: A 102mm
- execution: 2 hooks, extendable 6 times
- Manufacturer:RR
- Item number:10622
- Load capacity: 650 - 3000kg
- Dimensions W x H: 560x610mm
- depth: 2260 - 3760mm
- Weight: 210kg
- Clear entrance pocket dimensions: A 169mm
- Manufacturer:RR
- Item number:10623
- Load capacity: 1000 - 5000kg
- Dimensions W x H: 560x610mm
- depth: 2260 - 3760mm
- Weight: 250kg
- Clear entrance pocket dimensions: A 169mm
- Manufacturer:RR
- Item number:10842
- Load capacity: 400 - 1000kg
- Dimensions W x H: 790x290mm
- depth: 2260 - 3760mm
- Weight: 260kg
- Clear entrance pocket dimensions: A 410mm
- execution: 1 hook, 6-way extendable, 5-way side adjustment up to 26°
- Manufacturer:RR
- Item number:10661
- Load capacity: 250 - 1000kg
- Dimensions W x H: 620x190mm
- depth: 1500mm
- Weight: 49kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10721
- Load capacity: 100 -1000 kg
- Dimensions W x H: 620x190mm
- depth: 2400mm
- Weight: 57kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10722
- Load capacity: 550 - 2500kg
- Dimensions W x H: 620x210mm
- depth: 1500mm
- Weight: 60kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10723
- Load capacity: 250 - 2500kg
- Dimensions W x H: 620x210mm
- depth: 2400mm
- Weight: 75kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10724
- Load capacity: 1050 -5000 kg
- Dimensions W x H: 620x250mm
- depth: 1500mm
- Weight: 74kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10725
- Load capacity: 1050 -5000 kg
- Dimensions W x H: 620x250mm
- depth: 2400mm
- Weight: 93kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid
- Manufacturer:RR
- Item number:10775
- Load capacity: 250 - 1000kg
- Dimensions W x H: 675x290mm
- depth: 1500mm
- Weight: 57kg
- Clear entrance pocket dimensions: A 144mm
- Manufacturer:RR
- Item number:10662
- Load capacity: 350 -1000 kg
- Dimensions W x H: 620x925mm
- depth: 1390mm
- Weight: 52kg
- Clear entrance pocket dimensions: A 160mm
- execution: rigid, inclination 25°
- Manufacturer:RR
- Item number:10776
- Load capacity: 350 -1000 kg
- Dimensions W x H: 675x900mm
- depth: 1390mm
- Weight: 60kg
- Clear entrance pocket dimensions: A 144mm
- execution: rigid, inclination 25°
- Manufacturer:RR
- Item number:10720
- Load capacity: 175 - 1000 kg
- Dimensions W x H: 620x925mm
- depth: 1650mm
- Weight: 62kg
- Clear entrance pocket dimensions: A 160mm
- execution: telescopic, tilt 25°
Forklift crane and load arms
Load arms are available in different versions with different lengths and load capacities. Available as a rigid version or with variable length. The Forklift telehandler or telescopic crane arms, in addition to the extendable length, are also partially height-adjustable and thus offer the greatest possible flexibility
All load arms in our online shop are made of robust steel, durable and meet the requirements of the UVV (accident prevention regulations). A chain lock prevents the attachment from slipping off the forklift.
Large selection of forklift crane and load arms
In our large range of forklift crane and load arms, we offer different models and variants for all requirements. From rigid, stable load arms to very flexible crane arms, which are height-adjustable and extendable/telescoping.

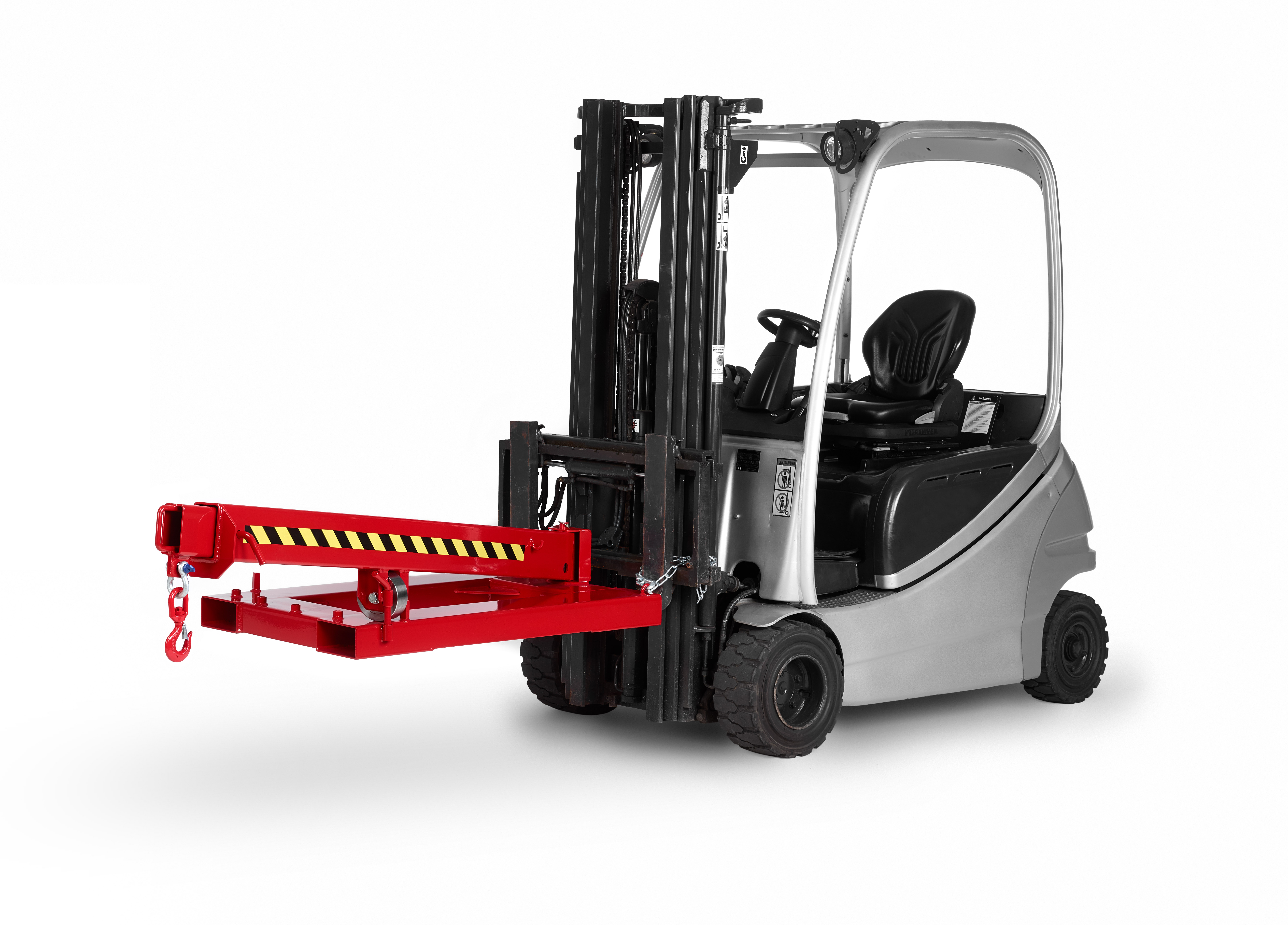

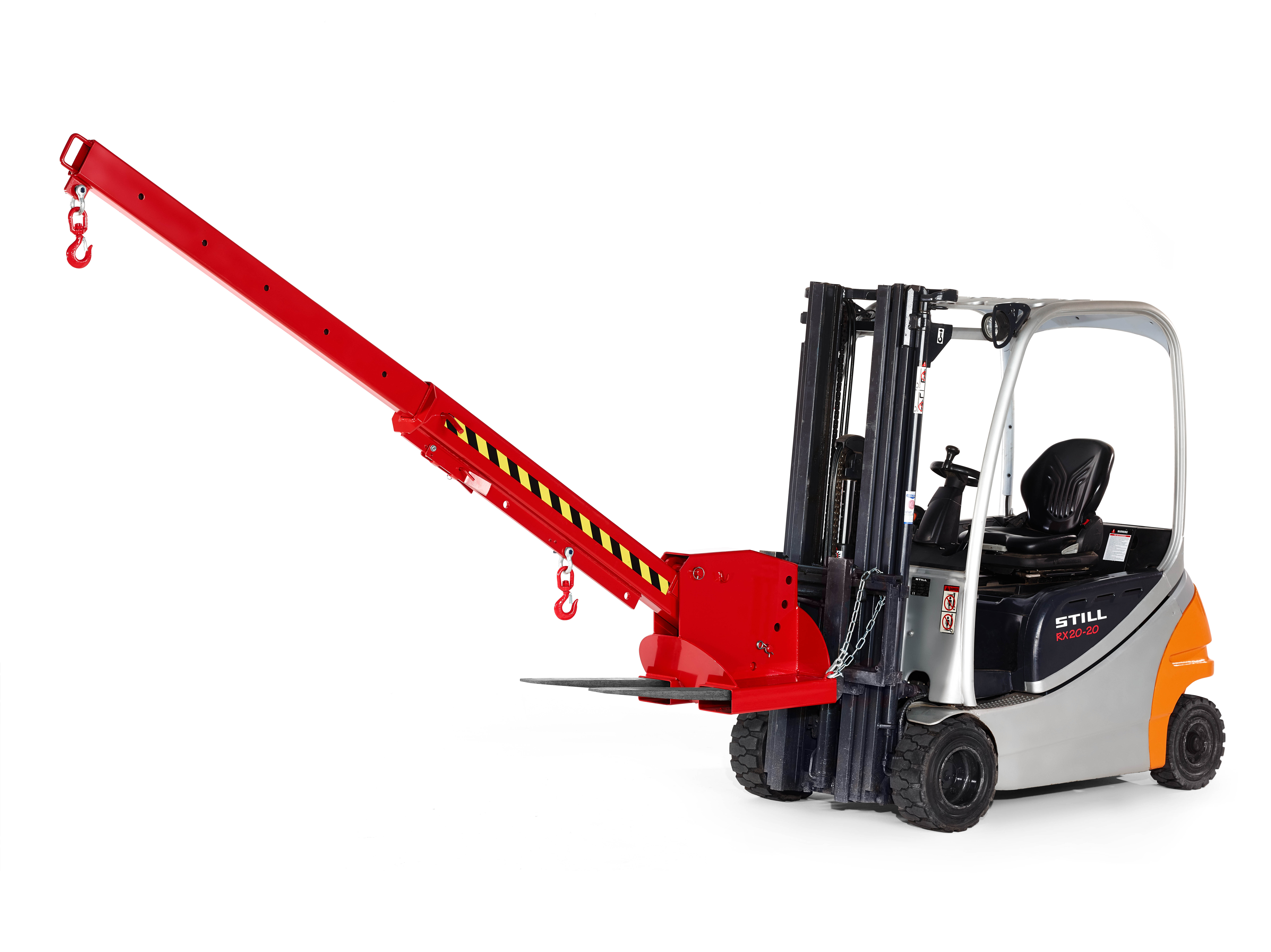

Crane arms/telescopic handlers
A crane arm is also called a telescopic loader or telescopic arm because they are adjustable in length. Our RKT and RKA models can be extended 6 times and secured at any position using a locking pin. When the arm is fully extended, the total length is 3720 mm. The difference in these model series is the rigid (RKA) or height-adjustable (RKT) version and the maximum possible load capacity of 3000 to 5000 kg. The Forklift crane arm RKT-5 For example, it can be adjusted to 5 different heights and can accommodate loads of up to 5000 kg.
Forklift load arms
Load arms for forklifts are ideal when a flexible length is not required. Due to their simpler design, the load arms are much easier to maintain than the adjustable forklift telehandlers. They are also cheaper to purchase.

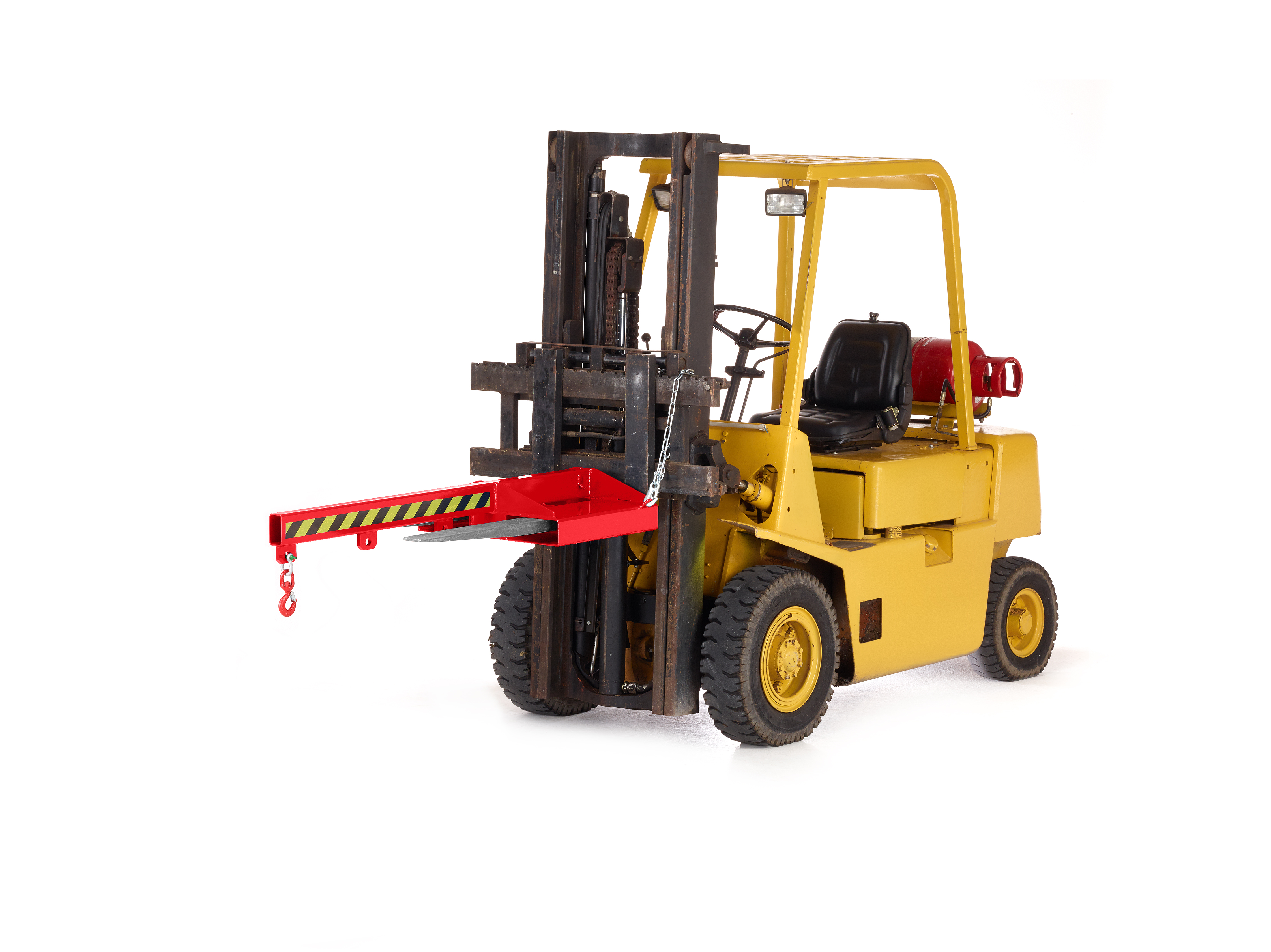

The load arm type RLA is characterized by being made from a continuous tube and therefore very high strength. Various variants with different lengths and load capacities are available within this series. The model RLA-5 2400 For example, offers a maximum load capacity of 5000 kg and has a length of 2400 mm

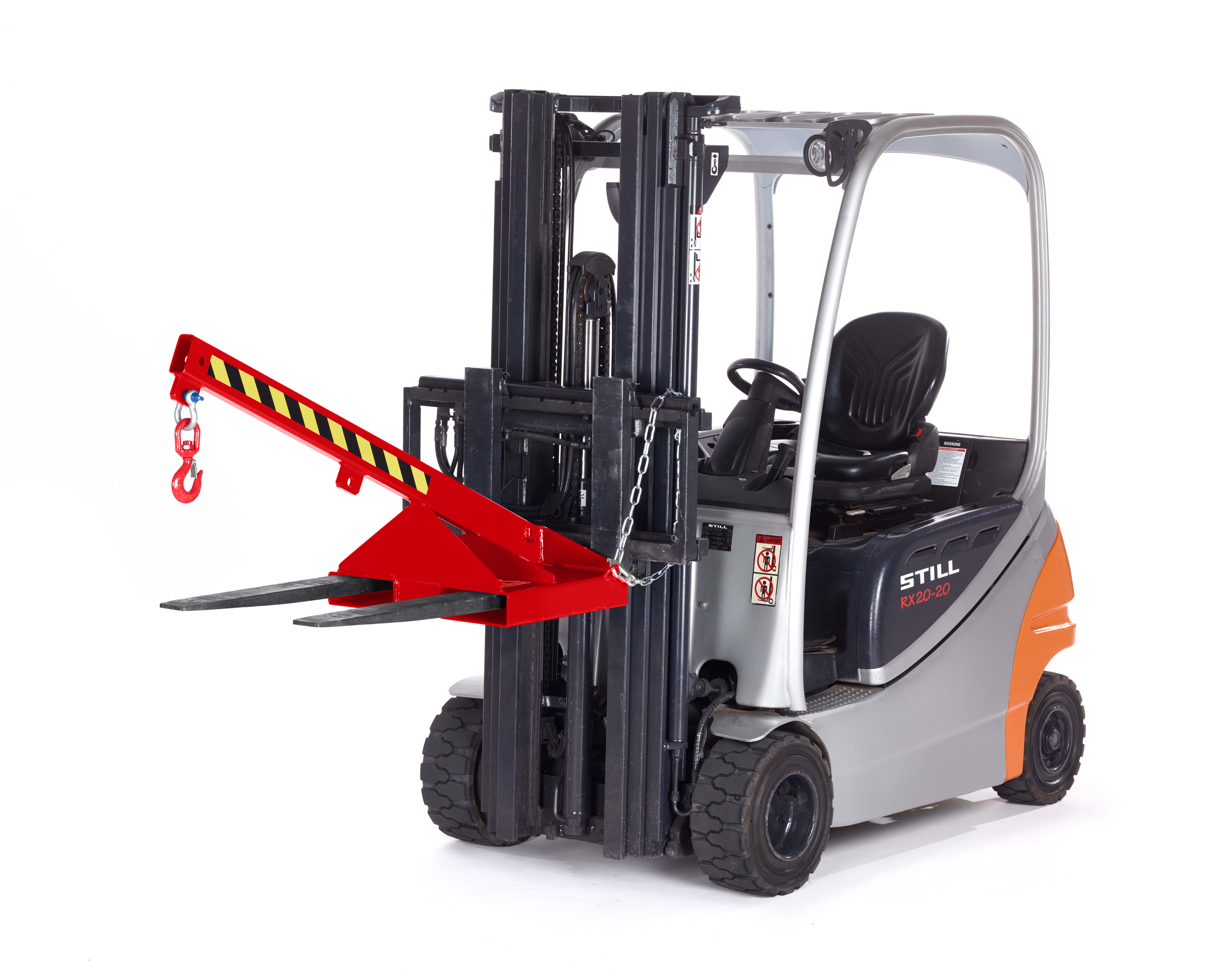

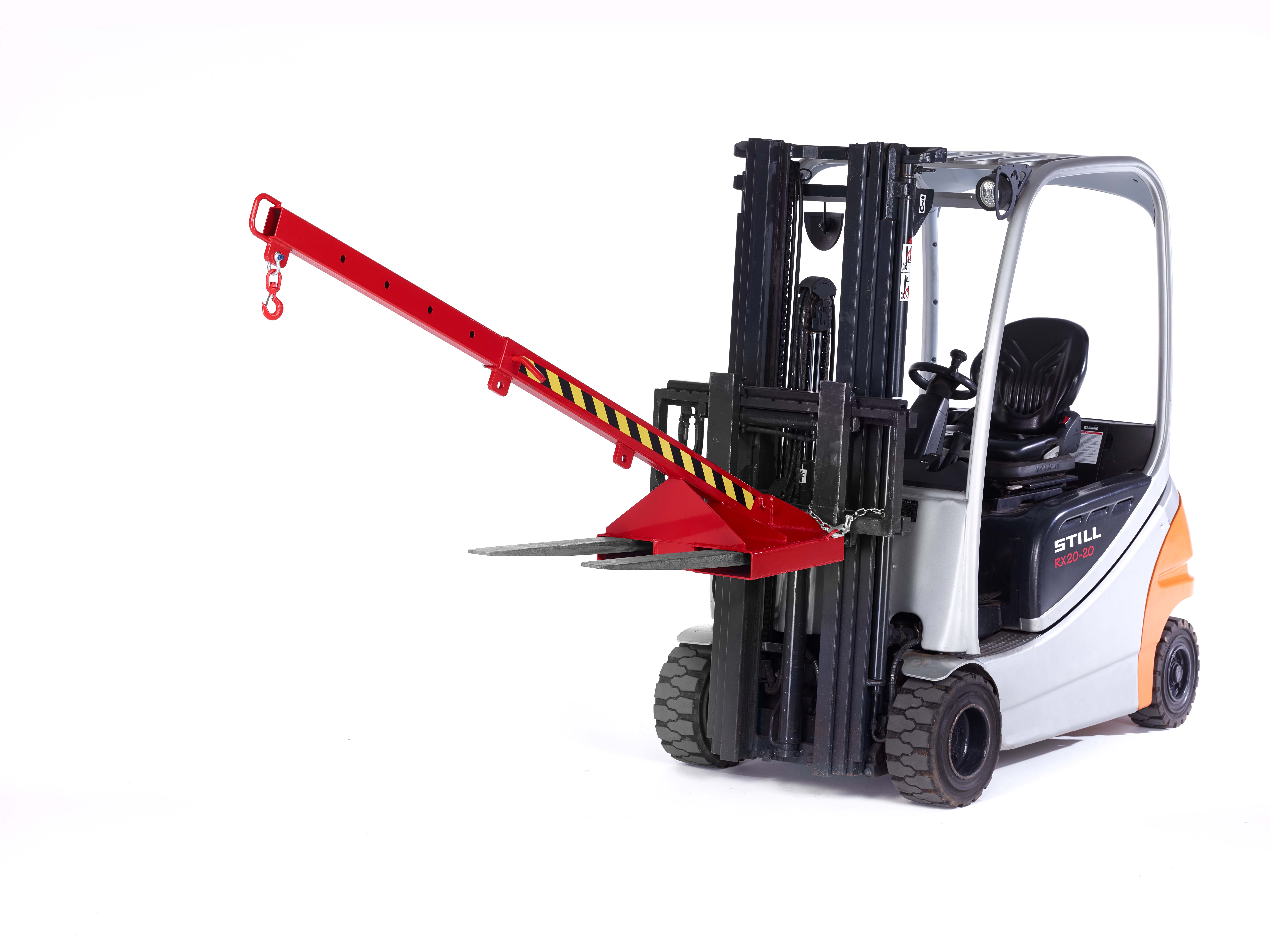

The RLH type load arm differs in that it is not flat, but has an inclination of 25°. Both model series also offer a special variant (DST), which is particularly suitable for pedestrian stackers/high-lift trucks.
Tested quality and safety
High quality and safety are our top priority. All load and crane arms in our range are made from robust steel and ensure a long and reliable service life under constant strain. They also have the CE marking and meet the requirements of the UVV (accident prevention regulations).
For additional safety, all forklift crane arms are equipped with a chain lock. This effectively prevents them from slipping Forklift tines .
Discover many possible uses for your forklift. The potential is huge. With forklift attachments, your forklift can be converted into one in no time turning device , Silo container or can be used for maintenance work with one Work platform for forklifts be equipped.
